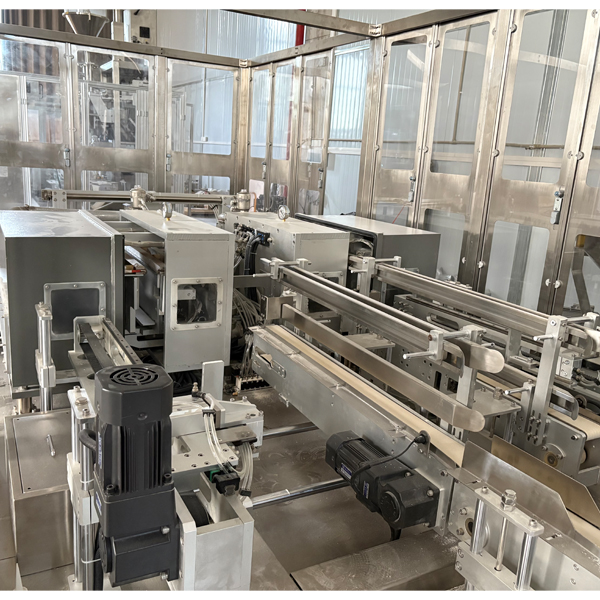

Vacuum brick bag pacakging machine line FG2000-420KZD
2025 High-Speed 420 Vacuum brick bag packaging machine line for sale
BOFO’s latest up film box motion flow wrappers are designed for a wide range of industries including food, cosmetics, and medical products. Our machines deliver exceptional performance, ensuring efficient and precise automated packaging solutions. Equipped with cutting-edge technology, environmentally friendly features, and a focus on energy efficiency, BOFO machines are the ideal choice for businesses looking to enhance their packaging operations at a competitive price.
Previous
Next
Brand –
BOFO
Model –
FG2000-420KZD
Machine Size –
6788*2070*1910 mm
Standard –
Complies with CE certification
Warranty –
One-year warranty covering the complete machine
4.9 out of 5.0 (150)
Main Features:
- OPP, CPP, PET film material compatible
- Free Lifetime Software Upgrades
- Lifetime Maintenance Support
- 7-Day Return & 30-Day Exchange Policy
Machine Specifications
| Packaging Speed | 20-25 bag/min.per line |
| Bag Length | 80-300mm |
| Bag Width | 60-200 mm |
| Film Width | Max. 420mm |
| Filling range | 100-1500g |
| Film Roll Diameter | Max. 320mm |
| Packaging Material | Paper, Plastic, OPP, PVC, PT/PE, OPP /CPP |
| Machine Dimension(L*w*H) | 6788*2070*1910 mm |
| Power Supply | 220V, 50/60HZ,18KVA |
| Machine Weight | About 4500kg |

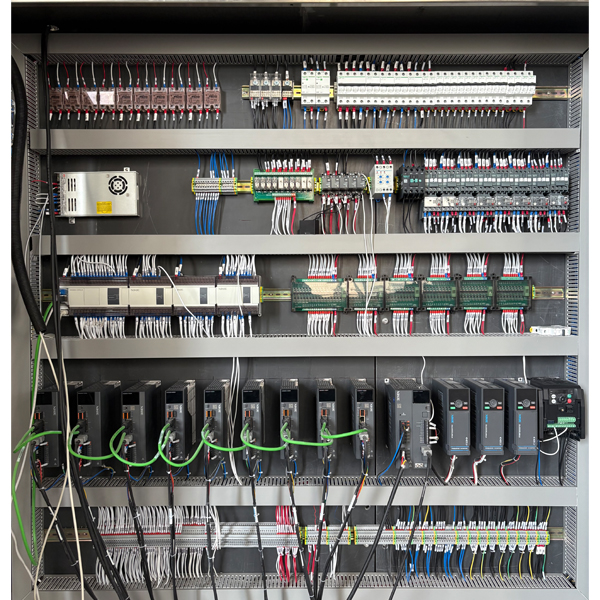

Electrical Configuration
| 1. PLC | XINJE from China listed company |
| 2. Servo motors | XINJE from China listed company |
| 3. Servo driversSensor | XINJE from China listed company |
| 4. Switch Button | Schneider from German |
| 5. Terminals | Wade Miller from German |

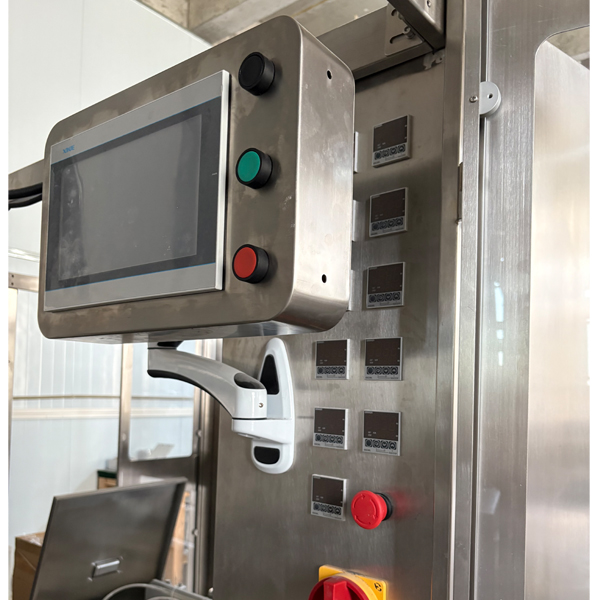

| 6. Display Screen | XINJE from China listed company |
| 7. Vacuum bump | YI Vacuum from China |
| 8. Photocell | AISET from Taiyan |
| 9. Temperature Control List | Omron from Japan |
| 10. Pushbutton Switch | Schneider from German |
| 11. Power | Ming Wei from Taiwan |
| 12.Cylinder | AirTAC from Taiwan |
| 13. Intermediate Relay | Omron from Japan |
| 14. Two Wire Switch | Schneider from German |
Key Features That Make Us Stand Out
I
Flexible Options to Fit Your Business
Our team is ready to discuss additional options to align our solutions with your unique needs. Whether you require special handling, system integration, or innovative designs, we’re here to help.
- Empty bag detection unit
- Date code printer
- Straight line cut with easy tear
- Hole punching device
- Fix number bag cutting device
- More
